YX25-200-1000 Automatic Roof Panel Roll Forming Machine / Glazed Tile Making Machine
Roof Panel Technical Parameter
Color Steel Sheet Thickness: 0.4-0.7mm Color Sheet
Color Steel Sheet width: 1000mm
Roller Stations: 16 stations
Way Of Drive:1.2 inch single chain
The speed of the roll forming machine:0-12m/min
Roller Material: 45# forge steel, coated with chrome
Shaft Material and DIA:￠76mm, material is 45# forge steel
Main Motor Power: 7.5kw
Error of Cutting Distance of Glazed Tile: ±1-2mm
Roof Panel Main Components
| S.N | Equipment name
| Quantity |
| 1. | Feeding and leveling device | 1 set |
| 2. | Main roll forming machine | 1 set |
| 3. | 5 tons passive decoiler | 1 set |
| 4. | Hydraulic station | 1 set |
| 5. | Control system (including control box) | 1 set |
| 6. | Spare parts | 1 package |
Machine picture

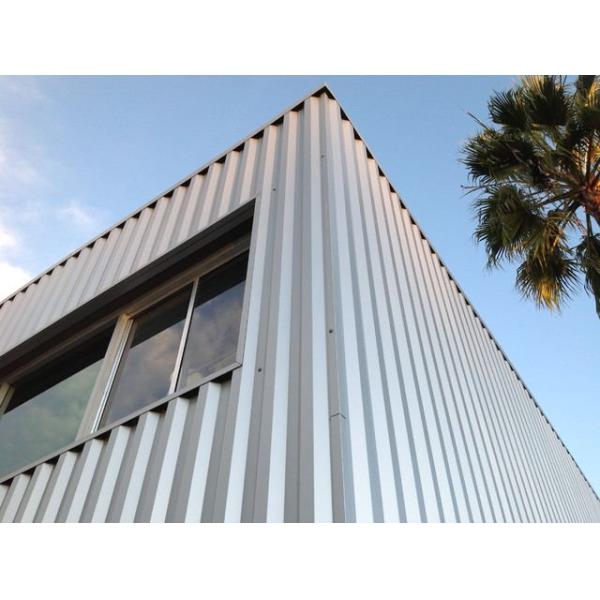

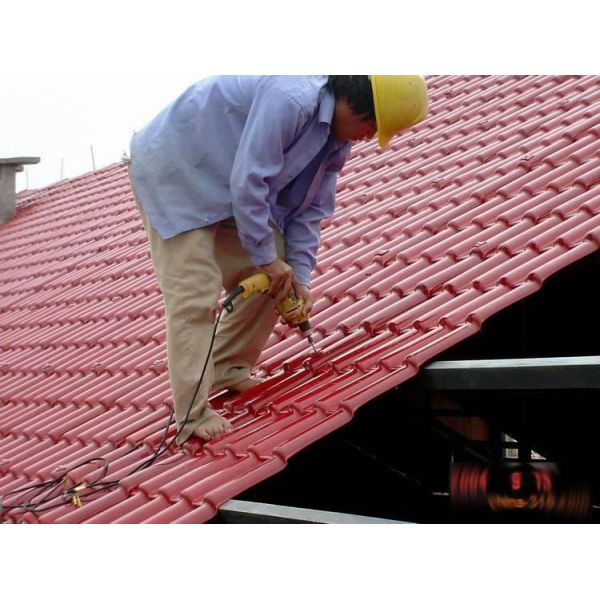

Application
Roof Panel, Wall Panel

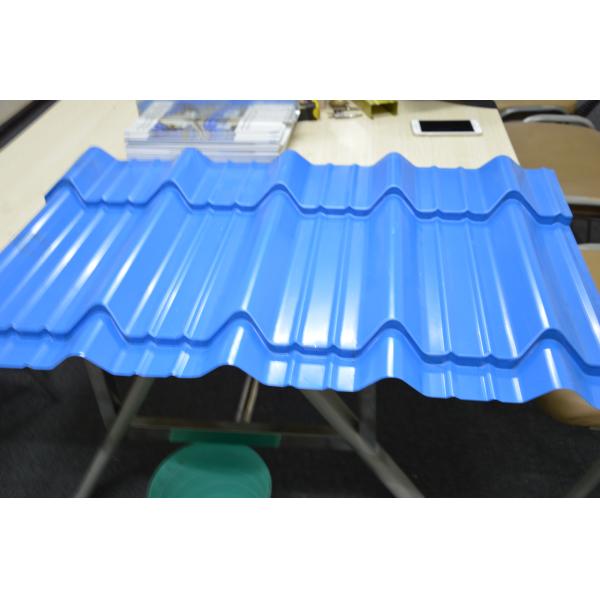

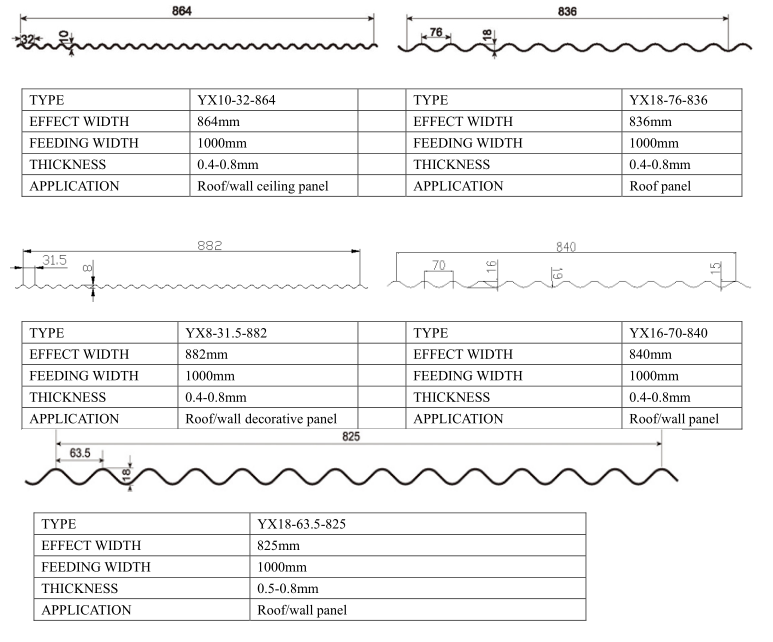

Profiles of Roof Panel
Our service
Pre-Sales Service
* Inquiry and consulting support.
* Profile drawing and roll forming solution.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
